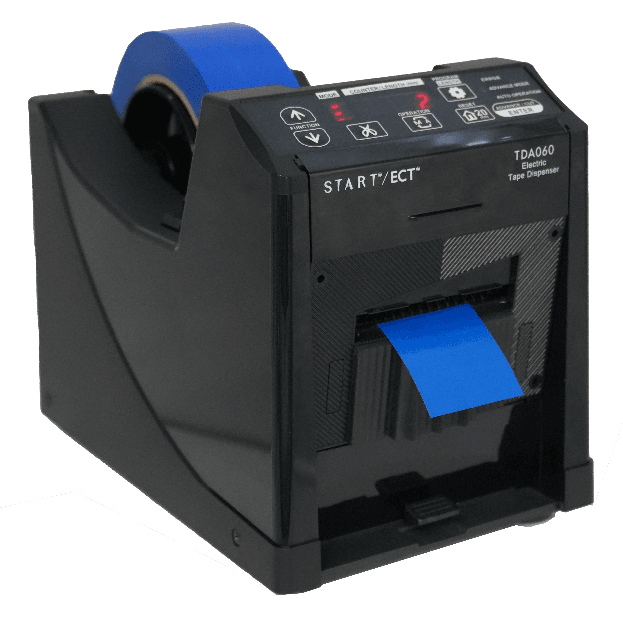

START International TDA060 – The New Benchmark in Professional Tape Dispensing
The START International TDA060 tape dispenser is engineered for production environments that demand exceptional accuracy, flexibility, and reliability. Combining broad material compatibility, advanced programmability, and user‑oriented functionality, the TDA060 delivers consistent performance across diverse industrial applications. Its compact design and modular construction make it a powerful yet practical tool for any modern workspace.
Robust Capabilities for Every Taping Requirement
The TDA060 stands out thanks to its ability to handle a remarkably wide range of materials. It supports various adhesive tapes such as PP, PI, PVC, PE, fabric, Kraft, fiberglass, and double‑sided tapes, while also being capable of cutting non‑adhesive materials like ribbon or tubing. Depending on the tape type, the device accommodates 5–60 mm wide materials, and precisely cuts lengths ranging from 5–9999 mm with an accuracy of ±2 mm.
The dispenser accepts multiple roll formats, efficiently processing rolls up to 190 mm in diameter, and supports both 1” (25.4 mm) and 3” (76.2 mm) cores. For applications requiring parallel processes, the TDA060 can even dispense and cut two tapes simultaneously, allowing operators to significantly increase workflow efficiency without additional equipment.
User‑Focused Design for Maximum Productivity
Equipped with both manual and automatic feed and cut modes, the TDA060 adapts easily to different work methods. The integrated tilt feature at the base ensures that long cut pieces hang freely without tangling, maintaining a clean and efficient working area.
The dispenser fits seamlessly into any workstation thanks to its compact footprint and optional wall‑mounting capability, freeing up valuable workspace. Multiple mounting and roll‑holding options make it easier to handle challenging or rigid tapes, while the modular structure ensures quick and simplified maintenance. For hands‑free operation, an optional foot pedal allows the user to trigger feeding and cutting while keeping both hands available for other tasks.
Advanced Programmability for Demanding Processes
What truly separates the TDA060 from conventional tape dispensers is its intelligent programmability. The device offers eight memory slots for storing different cut lengths, which can be selected instantly. It can also be programmed to cycle through stored lengths automatically, ideal for processes that require sequential cuts.
Adjustable feed speed makes handling difficult materials easier, while the built‑in counter enables counting up or down for accurate production tracking. When working with non‑adhesive materials, the dispenser can cut a programmed quantity of pieces continuously, without interruption. All these features can be combined, allowing highly customized workflows that meet even the most demanding production requirements.
The TDA060 combines performance, flexibility and ease of use – it truly is the new benchmark in professional tape dispensing.
For more information about the new TDA060 and other products from START International, please contact our sales .
